Connect & Configure

2. Web Configuration

Connecting to Web Configuration

For the first time, you need to connect to the controller in Access Point (AP) mode. Once this has been done, the WiFi mode can be changed if desired. If you use Station Mode, please first make sure your router has mDNS/Bonjour enabled, and that you enter "http" and not "https" when loading tonex.local.

Follow these steps: 1. Reboot the controller. 2. Within 60 seconds, use a phone or PC to connect to the WiFi device TonexConfig. 3. Enter the password for the network: 12345678. 4. The controller will automatically supply a network address for your device (DHCP is supported).

!!! Attention
    some phones may attempt to use this network for Internet access, which will not be available. Watch out for any messages asking you to confirm the connection.
  1. Open a web browser on your phone, tablet, or computer.
  2. In the address bar of the web browser, enter http://tonex.local. This should load the web config screen.
  3. Once you have saved the settings (or if you don't want to change anything) you can close the web browser. The settings will be already changed on the Polar controller.

QR Code Connection

You can also connect to the controller by scanning the below QR code using your phone camera or QR scanning app:

Polar WiFi Connection QR Code

Settings Changed in Web Configuration

The following settings can be found on the web configuration page. More detailed descriptions for each setting can be found on the GitHub page.

  • Gate/Noise Gate: Enable, Post, Threshold, Release, Depth.
  • Preset Management: Select & Name Presets.
  • Effects: Change & Save Effects Parameters.
  • Bluetooth: Mode, Device Type, Custom BT Device Name.
  • MIDI: Change MIDI Channel, Deactivate Wired MIDI Input.
  • Misc: Disable Preset Reset if Same Preset Is Sent Multiple Times.
  • External Switches: Change Settings for External Switches (would require extra modification. See GitHub repo for more details).
  • WiFi: Change WiFi Mode, WiFi Power, Network Name (SSID), and Password.
  • System: Save and Reboot Polar to Activate New Settings.

3. Bluetooth

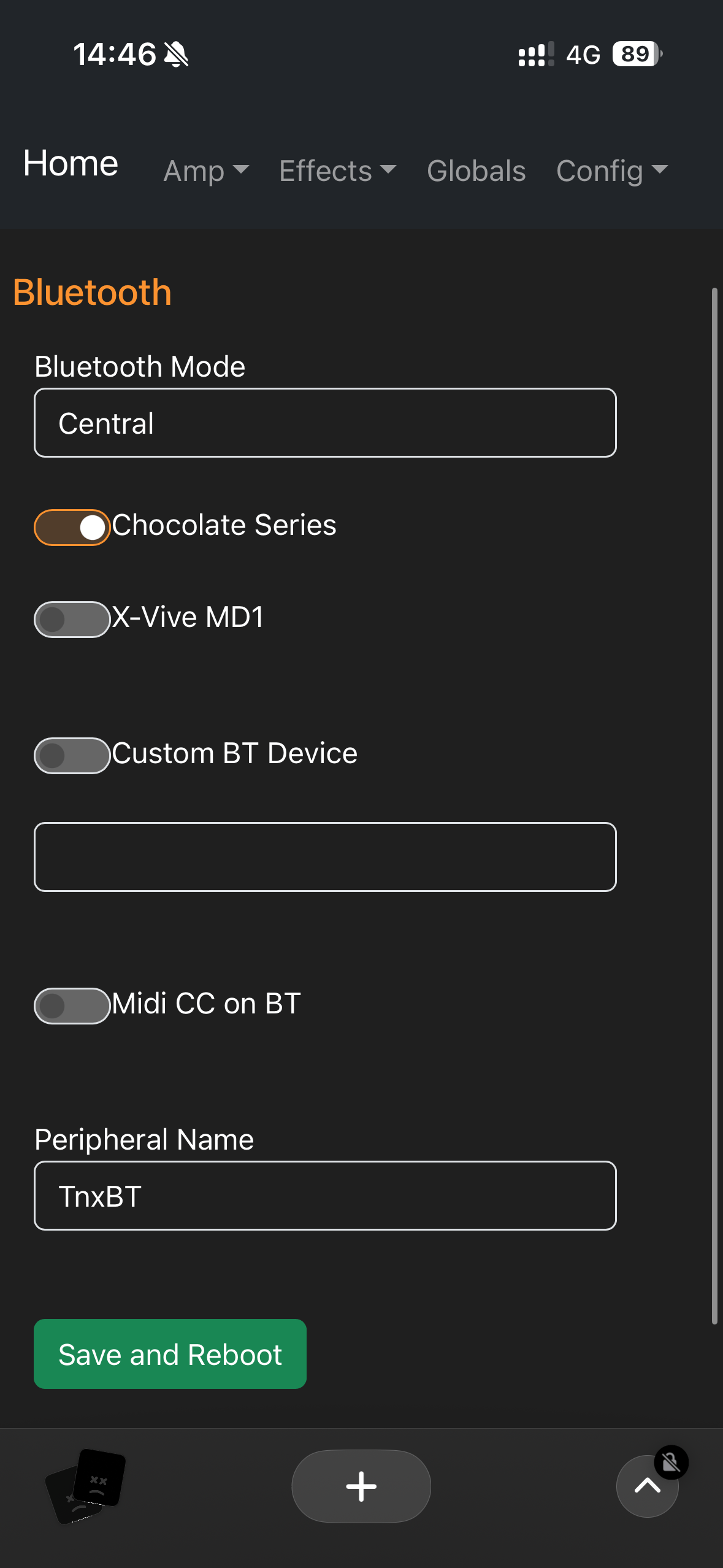

Bluetooth Settings

The "BT" category on the left menu of the Web Configuration page allows viewing and changing of the Bluetooth options.

Bluetooth Mode

  • Disabled: Bluetooth is totally disabled and non-functional.
  • Central (default): Allows the controller to locate and connect to other peripherals, like the M-Vave Chocolate.
  • Peripheral: Allows the controller to be discovered and connected to by other Central devices (like a Phone or a PC).

Device Enable Toggles

  • Chocolate Series: Enable support for the M-Vave Chocolate and Chocolate Plus Bluetooth footswitch controllers (default: on).
  • X-Vive MD1: Enable support for the X-Vive MD1 MIDI bridge device (default: on).
  • Custom BT Device: Enable support for some other Bluetooth MIDI peripheral. Enter its device name, and check the checkbox to enable it (default: off).

Bluetooth MIDI CC

This toggle enables support for Control Change (CC) commands over Bluetooth. These can control effects parameters and other device settings remotely using MIDI apps or controllers. * This toggle is disabled by default, because the M-Vave Chocolate pedal, when changing banks, sends a conflicting change that modifies the ToneX parameters. * This setting should not be enabled with a Chocolate controller that has the default configuration loaded.

4. Miscellaneous Settings

Preset Twice Toggle

  • Disabled (default): Setting the same preset index multiple times will not have any effect.
  • Enabled: Setting the same preset a second time will set the ToneX pedal to bypass mode. Setting it a third time will exit bypass mode. This setting is most suited to use with pedal models.

Footswitch (onboard) Mode

This setting controls how directly wired (onboard) footswitches will function. Note this has nothing to do with Bluetooth footswitch pedals, or the externally connected footswitches. * Dual Next/Previous: 2 footswitches that select preset next and previous. *

Save and Reboot

The Save and Reboot buttons on each configuration page will save all settings and reboot the controller to take effect.

5. Firmware Updates

Polar & ToneX One Update Instructions

IK Multimedia does not support MIDI, and this open source project is not in their consideration. 1. Do not update your ToneX One firmware (if there is a new release available) until you have checked the GitHub discussions page in case of incompatibility. Check the Releases page here. 2. If you update your ToneX One, your Polar may not work until a new firmware update has been released for it.

Note

If there is a new release on the GitHub Releases page and no new ToneX One update, you can update safely.

Detailed instructions for installing the firmware can be found here.

6. Contributing to the Project

  • Via Purchase: Your purchase has already funded the open source project. 10% of all Polar controller revenue is sent to Greg Smith as a thank you for creating and maintaining the software and firmware.
  • Via Discussion: Lodge an issue or discuss feature ideas on the GitHub repo.
  • Via Code: You can fork the repo, submit pull requests, and contribute yourself.
  • Via Word of Mouth: Spread the word! More customers mean more potential contributors and faster feature additions.
